Basic Info.
|
Actuator
|
Electric
|
Connection Form | Clamp |
| Type | Distribution of Direct Acting | Material | Brass |
| Pressure | Ordinary Temperature | Valve Structure | Pilot Piston Structure |
| Power Supply | AC Solenoid Valve | Usage | Safety, Emptying, Drain, Temperature Control, Flow Control |
| Standard | DIN | Application | General |
| Warranty | 12 Months | Place of Origin | Tianjin, China |
| Temperature of Media | Normal Temperature, Max 90degree | Port Size | DN8 DN10 DN15 DN20 DN25 |
| Model Number | Cwx15n/Q Electric Water Valve | Customized Support | OEM |
| Brand Name | Cwx Cwx-15n | Open/Close Time | 3-5seconds |
| Output Torque | 2.0nm | Structure | Ball |
| Rated Volotage | DC3.6V-6V/AC/DC9-24V,AC85-265V | Current | Max100mA (Cr04 Max150mA) |
| Power | Electric, Motorized | Transport Package | Carton |
| Specification | Customized | Trademark | TAIFENG |
| Origin | China |

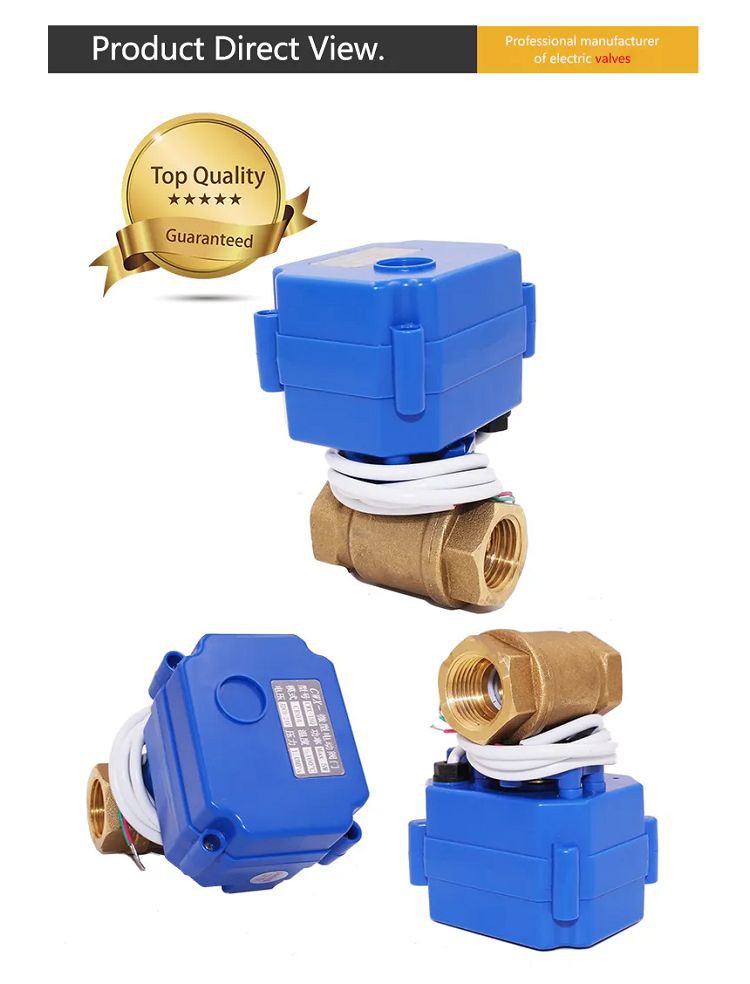

Products Description
(HY-15 Series HY-20 Series)
(HY-25S Series HY-60P Series)
I. Overview
The HY series miniature electric ball valve actuators are encased in ABS plastic, featuring a compact, exquisite, and durable design; the transmission mechanism uses all-metal gears, which are highly precise and provide substantial torque.hey offer various control methods, capable of receiving remote valve control signals and providing position feedback signals to intelligent detection units.
II. Scope of Application
1. IC card smart water meters, thermal energy meters, HVAC valves.
2. Central air-conditioning fan coil units, fire sprinkler systems.
3. Water-saving projects in universities, automatic control systems, industrial automation, and other small devices.
4. Environmental protection, water supply and drainage, water treatment projects.
5. Water-saving appliances, drinking water equipment, etc.
Product Features
1. Aesthetically pleasing, compact in size, reliable actuator performance, high output torque, and long service life (50,000 to 100,000 cycles).
2. The actuator and valve can be assembled at multiple angles, facilitating your space allocation needs.
3. The ball valve adopts a floating seal structure, with no leakage, suitable for environments with heavy dirt accumulation and long periods of inactivity.
4. Suitable for replacing solenoid valves in environments where they fail to function properly.
5. Under water pressure of 0-1.0MPa, the working current is only 45-100mA (varies by model).
6. High protection level, suitable for use in relatively humid environments.

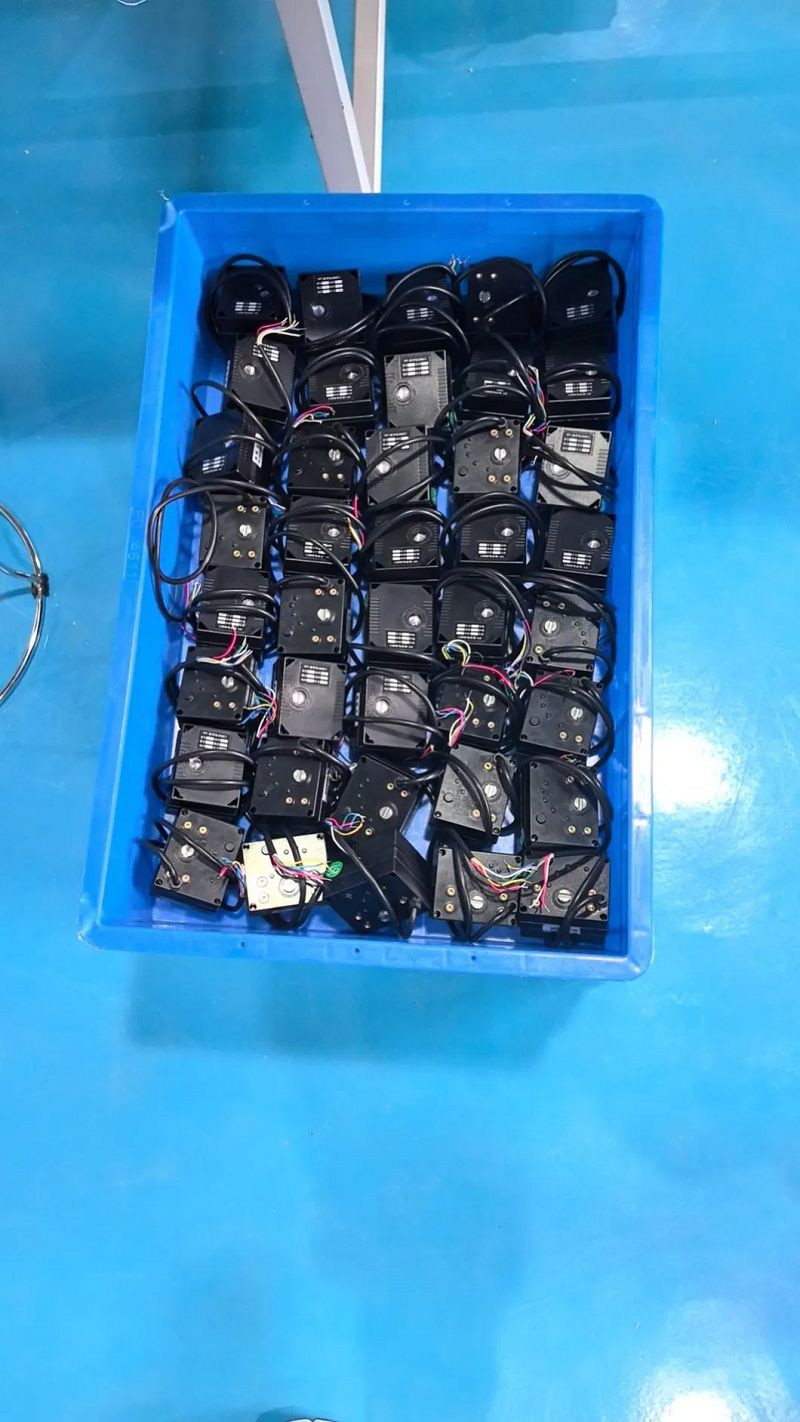

Packaging & Shipping
After Sales Service
We promise timely deliveries, offering a 10% delay compensation if expectations are not met. Our standard refund policy covers orders that fail to ship, are incomplete, or arrive with issues, ensuring complete satisfaction.
FAQ
Q: Are you manufacturer or trading company?
A: We are manufacturer, we have been producing electric valves for more than 10 years. We also offer OEM.
Q: What's the Payment Method?
A: T/T, Paypal, Western Union, Moneygram, L/C, etc.
Q: What's your Minimum Order Quantity (MOQ)?
A: Our MOQ is 1 piece.
Q: What about the delivery time?
A: Sample needs about 3 working days, large order delivery time will depend on your quantity.
Q: Would you have a discount if I have a large order?
A: Yes, we could offer different discounts according to your order quantity.
Hot Tags: autotrol water valve, China autotrol water valve manufacturers, suppliers, factory, 12V Motorized Water Valve, Autotrol Water Valve, Electric Solenoid Valve Actuator 2 Way, Normal Temperature Environments, Smart Industrial Electric Solenoid Valve, Water Irrigation Valve
Technical Parameters
|
Model |
Diameter |
Control Mode |
Switching Time |
Rated Voltage |
Operating Current |
Nominal Torque |
|
HY-20P |
DN8-32 |
CR01 CR02 |
5S |
DC3-6V |
< 80mA |
2NM |
|
HY-15Q/N |
DN8-32 |
CR01 CR02 |
3S/5S |
DC3-6V |
< 80mA |
Q≤ 1.5NM |
|
HY- 25S |
DN8-32 |
CR01 CR02 |
5S |
DC3-6V |
< 100mA |
2.5NM |
|
HY-60P |
DN8-32 |
CR01 CR02 |
8S |
DC5/12/24V |
< 100mA |
6NM |
